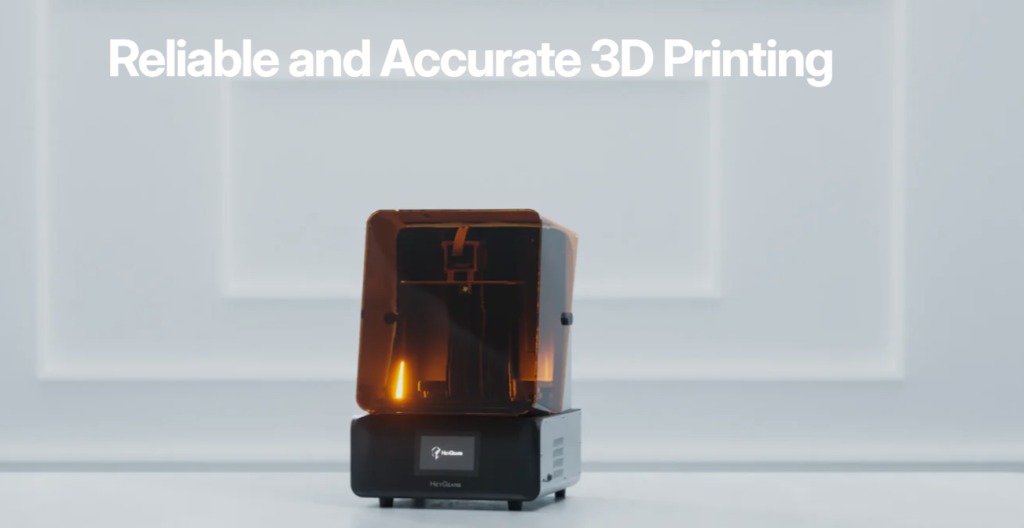

A Practical Troubleshooting Guide for Your 3D Resin Printer

3D resin printers have revolutionized the creation of intricate models, from highly detailed miniatures to complex engineering prototypes, offering smooth surfaces and unparalleled precision. This technology cures a liquid resin layer by micro-thin layer using UV light, delivering exceptional accuracy and smooth finishes. However, the journey to consistently perfect prints can sometimes feel like navigating a maze of settings and potential pitfalls. Many enthusiasts encounter common issues such as prints failing to adhere to the build plate, unsightly layer lines, or even incomplete models. The good news is that understanding the root causes of these problems, and how modern 3D resin printers address them, can transform your printing experience from frustrating to consistently successful. This guide will walk you through common challenges and offer actionable insights to help you achieve the flawless finishes you desire.

Addressing the Root Causes: Common 3D Resin Printer Challenges

Understanding specific print failures is the first step towards resolving them. Here’s a breakdown of common issues and how to tackle them, often with the help of intelligent printer features.

Challenge 1: Models Not Sticking to the Build Plate (Adhesion Issues)

One of the most common and disheartening failures is when your meticulously prepared model detaches from the build plate or fails to adhere altogether. This can be caused by an unlevel build plate, insufficient burn-in layer exposure, or even an uneven build plate surface.

Solution & Prevention: Proper build plate levelling is key for initial layer adhesion. Traditional manual calibration uses paper but lacks precision, while advanced 3D resin printers like the HeyGears Reflex RS simplify basic levelling via Floating Screen Auto Levelling—it auto-eliminates gaps to keep the build plate parallel to the screen. Note this auto-mode has a 240 μm gap correction limit; if unevenness exceeds this, manual levelling is required.

For manual adjustments, pairing with a high-precision mechanical sensor is better: no paper is needed, just tighten/loosen screws, and the sensor enables more accurate levelling than both paper-based manual setups and auto-levelling within its limit.

Additionally, HeyGears’ C5 grade Z-axis module ensures ≤2 μm layer positioning error for stable thickness and clear details. Setting an adequate burn-in layer count and exposure time also strengthens initial layer bonding to the build plate.

Challenge 2: Surface Imperfections (Lines, Peeling, Delamination)

Visible layer lines, pixel patterns, or even parts of your model peeling or delaminating are common aesthetic and structural issues. Layer lines often stem from layer thickness settings, while pixel lines relate to the LCD screen’s pixel grid. Delamination, especially with inverted cavity structures or model errors, can cause significant print failures.

Solution & Prevention: To minimize layer lines, reducing the layer height can create smoother transitions. For pixel lines, careful model reorientation and anti-aliasing settings in slicing software can help. For more complex issues like delamination, ensuring your model is error-free before slicing is paramount. Advanced 3D resin printers offer sophisticated features to combat these.

For instance, HeyGears printers employ full-field screen calibration across 60 zones to ensure light intensity variation remains within ±3% for a printing tolerance of ≤0.05 mm, enhancing accuracy and reliability. Furthermore, Adaptive Z-axis Compensation, which adjusts for each resin and supports up to 180 combinations of angles, hole sizes, and edge types, minimizes deformation and resin buildup, significantly reducing post-processing time.

Challenge 3: Incomplete or Missing Parts

Sometimes, sections of your model simply don’t print, leaving unsightly gaps or entirely missing features. This is frequently due to insufficient support structures or issues with resin flow and curing.

Solution & Prevention: Well-placed and sufficient support structures are critical, especially for overhangs and intricate “island” features. Intelligent Auto-Supports in slicing software can significantly increase print success rates and reduce detachments by intelligently configuring scaffold supports. Additionally, Automatic Repair features can detect and fix model defects like inverse normals, holes, and intersecting shells, preventing corrupted slice images and subsequent failures.

Modern 3D resin printers also incorporate intelligent algorithms, such as Dynamic Motion Algorithm 3.0, which reads real-time force sensor data (80 times per second) and adjusts motion parameters to efficiently reduce redundant time, ensuring quality while enhancing speed. High-sensitivity force sensors (0.1 N sensitivity) can even detect resin residue as small as 0.2 mm or print failures, automatically stopping the process to prevent damage and waste.

Beyond Troubleshooting: Optimizing Your Workflow for Success

Once you’ve addressed common print failures, optimizing your printing workflow can further enhance consistency and quality.

The Crucial Role of Resin Temperature

Resin works best at room temperature, typically around 20-25°C. If resin is too cool (e.g., below 20°C), its viscosity increases, making it harder to cure properly and potentially leading to print failures.

The HeyGears Reflex RS 3D Printer (with an optional heated tank) addresses this with automatic resin heating, elevating resin temperature from 10°C (50°F) to an optimal 22°C (73°F) in about 20 minutes and maintaining it throughout the print for optimal results.

Smarter Slicing and Support Strategies

Slicing software translates your 3D model into printable layers, generating crucial support structures. Intelligent pre-processing and support generation can drastically improve success rates.

HeyGears’ Blueprint slicing software offers one-click slicing without manual adjustment and automatic repair of model defects, along with intelligently configured auto-supports, making the pre-printing stage seamless for users. This simplifies a historically complex part of the workflow.

The Power of Calibration and Monitoring

Dialling in exposure settings and monitoring your print are vital for consistent quality. Starting with RERF files for new resins is highly recommended.

Actionable Insight: HeyGears resins are engineered to work exclusively with HeyGears resin 3D Printers, ensuring optimal performance and reliability. This integrated approach means both hardware and software are finely tuned to match resin properties, minimizing the need for extensive trial-and-error in settings and providing consistent output. Their advanced materials, like PAH10 Black Resin, are tailored for high stiffness and precision, offering specific tolerances and heat resistance. This focus on a closed, optimized ecosystem simplifies the selection and calibration process. Post-print analysis reports also accurately identify issues, providing invaluable information for troubleshooting.

Embracing Effortless Precision with HeyGears

The landscape of 3D resin printer technology is continuously evolving, with innovations focused on making the process more accessible and reliable. HeyGears aims to empower users with commercial-grade results through a blend of reliable hardware, smart AI algorithms, and automated features. Their printers, such as the Reflex RS, are built with features designed to minimize common printing frustrations. From ensuring the resin is at the optimal temperature and the build plate is perfectly level before a print starts, to dynamically adjusting motion control during printing and offering intuitive software, the emphasis is on an effortless experience. This holistic approach to 3D resin printer operation means less time troubleshooting and more time creating.

Conclusion: Your Path to Consistent Quality

Mastering your 3D resin printer is an iterative process, but with the right understanding and tools, achieving professional-level results is within reach. By focusing on critical aspects like build plate adhesion, managing surface imperfections, ensuring robust supports, and optimizing environmental factors like resin temperature, you can dramatically improve your print success. Leveraging advanced features found in modern 3D resin printers streamlines these processes, turning potential pain points into automated solutions.

Remember that post-processing, including efficient washing and curing, is the final touch to perfection. Utilizing dedicated wash and cure stations, such as the HeyGears Wash and Cure stations, completes a robust production system, significantly reducing mess and simplifying the workflow. This ensures your models are clean, fully cured, and ready to impress. Embrace these insights, and enjoy the rewarding world of high-precision resin 3D printing.
