How to Select the Right Air Circuit Breaker for a Power System

Choosing an appropriate air circuit breaker (ACB) is a basic choice when any low-voltage power distribution system is to be designed. As the primary protective devices for many electrical installations, Air Circuit Breakers are responsible for equipment protection, continuity of operation, and the elimination of electrical hazards in the human environment. The incorrectly chosen breaker can cause frequent tripping, insufficient fault protection, high downtimes, or even serious system breakages. When making the right decision, it is necessary to understand the technical factors, the factors of operation, and the factors of the environment under consideration.

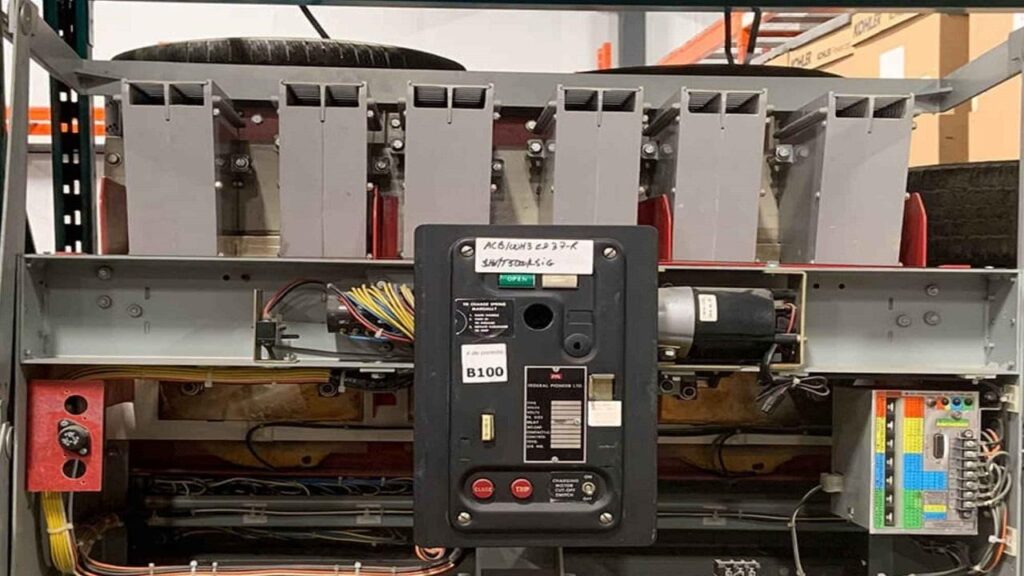

Use of Air Circuit Breakers in Power Systems

Air circuit breakers have found application in low-voltage circuits, generally to 690 volts or less, where fault currents can be high. These are usually built as an incomer, bus coupler, or outgoing feeder on main distribution boards. ACBs can short-circuit currents of large size using air as the arc-quenching medium and with consistent performance. In particular, they play a significant role in the industrial complex, business premises, data centers, and infrastructure construction projects, where a continuous power supply is crucial.

Evaluating System Load Requirements

The first step in the process of selection is a clear knowledge of the nature of the load of the system. The current breaker air circuit should be rated at least as much as the maximum current anticipated in the circuit. The calculation of loads should be done in normal operating conditions, peak demand, and even in the case of expansion in the future. The choice of an ACB having a low rated current can cause nuisance tripping and overheating, whereas a too large size can decrease the sensitivity of protection and add unnecessary expenses. An effective load assessment makes the breaker work in its optimum range.

Assessment of Short Circuit Levels and Breaking Capacity

One of the most important parameters in the choice of an air circuit breaker is breaking capacity. It is the largest fault current that the breaker can interrupt successfully without being damaged. A potential short circuit current at the point of installation is influenced by some factors, including the size of the transformer, the system impedance, and the cable layout. The operating ACB should possess a breaking capacity that is rated over this calculated fault level. Inability to satisfy this need may result in disastrous equipment malfunction and severe safety hazards when in fault conditions.

Protection Functions and Appropriate Trip Unit

Current air circuit breakers typically have electronic or intelligent trip units, which offer enhanced protection and monitoring features. These trip units permit a detailed control of the protection settings on long-time overload, short-time delay, instantaneous short-circuit, and ground fault protection. To correctly isolate a faulty bit of the system, it is necessary to coordinate correctly with downstream protective devices to guarantee that only the faulty part of the system is isolated. Trip units that are intelligent also have the ability to communicate with building management systems or energy monitoring platforms, allowing better visibility and control of the system.

Fixed Type and Draw-Out Type Concerns

The design of the air circuit breaker in terms of physical configuration is very relevant to the design and maintenance planning of an electrical system. Fixed-type ACBs are permanently fixed in the switchboard and prove to be cheaper. They can be used in the case of applications where maintenance shutdowns are acceptable. On the other hand, draw-out type ACBs may be safely removed from the panel to be inspected or replaced without shutting down the entire system. Where uptime is crucial in critical power applications, draw-out breakers have increased safety, flexibility, and fewer downtimes.

Installation Environment and Operating Conditions

The performance and the lifetime of air circuit breakers are greatly affected by the environmental factors. Mechanical and electrical components may be influenced by high ambient temperatures and humidity, dust, vibration, and corrosive atmospheres. The choice of the ACBs in the harsh environment should be in regard to strong construction, strong insulation, and suitable envelopment cover. Ventilation and adherence to derating measures will also be vital to avoid overheating of the system as well as premature ageing of the parts.

Significance of Standards and Certifications

Quality and reliability are major indicators of compliance with international standards. Air circuit breakers produced in line with standards like IEC 60947-2 are heavily tested in terms of electrical performance, mechanical endurance, and safety. Standards like CE, CB, TUV, or CCC can confirm compliance with the regulatory requirements and help to approve in the international market. The certification of products used in the project lowers the risk of projects and also makes the products compatible with the global engineering and safety standards.

Maintenance, Reliability, and Lifecycle Cost

In addition to the first selection, the long-lasting reliability and maintenance must also be taken into account. Modular air circuit breakers that are easy to diagnose, service, and have easy-to-access components are easier to inspect and maintain. The characteristics, such as the event logs and fault records, allow the maintenance teams to find the problems in less time and minimize the downtime. Assistance of the total lifecycle cost, which is associated with maintenance, spare parts, and energy losses, gives a clearer image of the actual value of the breaker over time.

 Manufacturer Support and Customization Role

Another factor of ACB selection is the abilities of the manufacturer. Manufacturers that provide high-quality technical assistance, good after-sales service, and parts that are easy to acquire will help in a smoother implementation of the project and its smooth operation over a long period of time. To system integrators, panel builders, and distributors, OEM and ODM services give them further flexibility to fulfil a particular project or market demands. The manufacturing partner provides an extended sense of security to the power system design.

Conclusion

The choice of the appropriate air circuit breaker to use in a power system demands a thorough analysis of the electrical parameters, intended application, environmental factors, and long-term operational factors. The effective system protection and reliable functioning of the system will be provided by carefully analyzing the rated current, breaking capacity, protection functions, the type of configuration, and adherence to international standards by engineers and decision-makers. A properly selected air circuit breaker not only protects the important equipment but also improves the safety, efficiency, and continuity in the current low-voltage power distribution systems.
